What is Reclaimed rubber ? what are their usage and what grades are available ?

When rubber is passed through the thermo-chemical process, it becomes reclaimed rubber. During the procedure, there are many crosslinks, and double bonds with our broken and your bonds are form to attain this type of rubber. With the help of thermo-chemical process, many properties of the original rubber could be changed as per the requirement. One of them is the viscosity of the rubber is reduced by shortening the polymer chain; this involves chemical reaction as well as mechanical shear. However, all these processes have one main objective, that is to increase the strength and stability of the naturally obtained rubber sap. Thus, reclaimed rubber possesses strength as well as stability to manufacture different types of products with prolonged sustainability and durability.

In 1846, Muriate of Lime (Calcium Chloride) was used as the main element to remove free sulphur. Moreover, a process named “Pan Process” was used in 1858 for the same. Thus, the process of claiming a rubber is not a new one; it is being practised since the 18th century. With the evolution of mankind, there exist many various methods to reclaim rubber, but they all follow a similar path.

The process of reclaiming rubber begins with collecting and selecting materials which are suitable for the manufacturing of processed rubber. This is one of the most critical steps as if the materials are contaminated, then the consistency of the product cannot be maintained. This part of the process was it not for ages and produced many inconsistent materials. Nevertheless, nowadays, this step is of uttermost importance, as companies what to deliver a quality product to their valuable consumers.

The second step involves reducing the size of the rubber and removing any other material which can contaminate the rubber latter on. In Tyre Reclaim, bead wire is removed along with the side walls by cutting. The thus obtained rubber is converted into granules which are below the size of 4mm. This is the removal of unwanted textiles and metals. On the other hand, Butyl Reclaim Tubes are firstly de-valved and then removal of patches takes place. Once prementioned processes hare done, the plastic is fragmented and granulated. Natural rubber tube reclaimed

The third step consists of blending the preliminary obtained granules with other chemicals and oils essential for the reclaiming process. In the fourth step, the mixture is subjected to heat, which enables the reaction to occur. This can be done in two ways, one by using a digester in which pressure is created by steam and the temperature is 160 degree Celsius. And others by producing heat mechanically toward enabling the reaction.

The fifth step is mastication, where either an extruder is used or two roll mill is used to break hi polymer chain. This work is physically done by the workers. This aids the reclaimed rubber in refining and blending. The sixth step is filtering. If the manufacturer wants to deliver higher quality products, they extrude the materials through a 60’s mesh (250 µm) filter. By doing so, any undigested material can be removed easily. The final step is finishing. The reclaimed rubber is either converted into blocks or converted into a thin paper sheet up to 15 mm thickness by sending it back to the mill. The final product is coated in anti-tack agent, and bundles of desired weight are made.

This rubber Comes in reclaimed rubber sheet form like below:-

Reclaimed Rubber Sheet
Reclaimed Rubber Sheet

Talking about reclaimed rubber price then I must let you know that its not even half of natural rubber and In other words its reliability is exceptional.

We are proud to say that we are premium reclaimed rubber manufacturers in India and Gujarat and we have now dominated the market to the global extent.

reclaimed rubber sheet

Recycling of rubber products is necessary as they are non-biodegradable and can cause numerous hazards to the environment. Thus, to contribute to help the environment, Gangamani Industries Private Limited makes it their primary goal to offer products to their customers made using recycled rubber material. Moreover, this also allows our customers to save numerous amounts on the products made from reclaimed rubber. But the question arises, from where do we get the source material for manufacturing reclaimed rubber sheets? The source material comes from the discarded rubber items by the consumers — for instance, rubber tubes, rubber tyres from trucks and other automobiles.

The process of reclaiming rubber begins with collecting and selecting materials which are suitable for the manufacturing of processed rubber. This is one of the most critical steps as if the materials are contaminated, then the consistency of the product cannot be maintained. This part of the process was it not for ages and produced many inconsistent materials. Nevertheless, nowadays, this step is of uttermost importance, as companies what to deliver a quality product to their valuable consumers. However, are recycled rubber sheets are made up of job that has been once used by different objects. Therefore, some qualities of the previously used rubber products are inherited by the newly formed rubber sheets.

If you are looking for excellent quality and durability against both physical and environmental factors, you should look no further than Gangamani Industries’ reclaimed rubber sheets.

One of the most prestigious and vital developments in modern industry is recycling of scrap Tyres as they are non-biodegradable matters and thus needed to be taken care of. With the help of this new waste management program, availability of fresh, affordable recycle rubber products, such as sheets, was made possible. Initially, without the help of the latest technology, the entire tyre was used as landfill material, where tyre as the whole was buried as it is. The method of the collection started by collecting the tires from the retailers and then making a pile of them, since no laws were restricting unwanted tires was designed, and the management was not possible. Nor there were programs designed to encourage users to manage scrap. This led to a problem as many Tyres were collected as scraps and did two lot of storage space. Even if they were used as landfills, they occupied the most massive places as compared to other landfill materials.

Many tyres are nowadays suitable for recycling as they can be made appropriate targets despite their bulk and resilience. With the help of new technology such as pyrolysis and devulcanization, the process of recycling can be made less complicated as compared to the past.

Rubber sheets can be used as matting in automobiles like cars buses trains and many more. This can also be used as doormats at certain places where the crowd is dense. They can also provide insulation in between the walls as well as between the ground and the floor. By doing so, one can retain heat as per the requirement of the regions with colder climates.

Reclaimed Rubber Prices vs NR Prices

There are many benefits of Reclaimed Rubber.

It offer long term sustainability of Tyre manufacturing companies

It offer Cheap availability of very good source of Rubber

It offers Faster Grown of Tyre Companies.

Processing Aid ?

• Improved Processing
• Uniformity
• Low Heat Development
• Low Thermoplasticity
• Minimum Reversion
• Low Swelling and Shrinkage
• High Rate of Cure
• Good Aging
• Good Shape Retention
• Improved Tack

Technical advantages of using Reclaimed Rubber

Shorter Mixing Times
• Less Power Consumed
• Less Heat Build up
• Faster Processing
• Low Thermoplasticity
• Reduced Swelling and Shrinkage
• High Cure Rate
• Minimum Reversion
• Good Aging

Reclaimed Rubber market

  • Automotive & Aircraft Tires
  • Cycle Tires
  • Retreading
  • Belts & Hoses
  • Footwear
  • Molded Goods

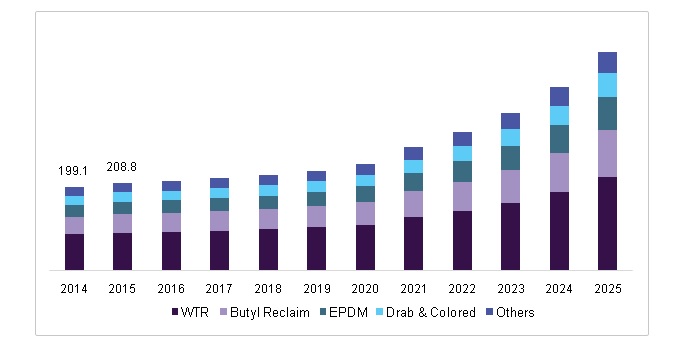

Expected market by 2020

The International rubber Industry was estimated at USD 1.90 billion in 2015 and its been growing by far till today. Reclaim Rubber trend is towards improving sustainability in the automotive Tyre industry has contributed widely in recent years. The final product is highly uniform and costs around one-third of existing polymer prices

Its now became an inexpensive raw material is largely preferred by manufacturer relating to its less electricity consumption and reduce its elasticity levels to make it easier to break down while processing.

expected reclaimed rubber market

What is hsn code of Reclaimed rubber?

HS Codes 40030000

Natural rubber tube reclaimed

Recycling of rubber products is necessary as they are non-biodegradable and can cause numerous hazards to the environment. Though rubber is obtained from natural resources, to increase its stability and sustainability, it is vulcanized and moulded into different forms and used in our day to day life. When the rubber products became obsolete, they are replaced by their users. These returned products are dumped by the users sold in the scrap market.

Nowadays, many manufacturers have started buying the rubber scrap, and with the help of the thermo-chemical process, they reclaim rubber. Similarly, natural rubber tubes reclaimed for their uses. For instance, many civil engineering companies use rubber tubes during their method of construction; whereas, rubber is also used as fuel majorly by cement manufacturing companies.

Tire-derived products:

Apart from using tyres as fuel, there are a lot of many uses of scrapped natural tyre tubes. Environmental protection agency of the United States of America cited a report in 2003 stating that 80.4% natural rubber tube tyres scrap was recycled by the markets for both recycling and beneficial use. Approximately 233 million tyres were reclaimed per year. New products derived from natural rubber tubes can generate various economic activity rather than combustion or any other low multiplier production. Moreover, the waste stream can be reduced without any generation of excessive pollution and emissions from the recycling operations.

  • Construction materials: One can build its entire home with the help of whole natural rubber tubes by ramming then full of earth and later on covering them with concrete known as earth-ships. Also, these tubes can be used in Civil Engineering applications, for instance, of sub-grade fill and embankments, back-fill for walls and bridge abutments, roads can be insulated with the help of sub-grade insulation material and landfill projects. Indeed, at many places, tires are bound together and use different types of barriers which can resist collision, erosion, rainwater runoff. A similar system can also be used as blasting mats, wave action that protects piers and marshes, and sound barriers can be made between roadways and residences to reduce sound up to certain decibels.
  • Artificial reefs can be built using natural rubber tubes after their reclamation. For making reefs, rubber tubes are bonded together in groups and placed underwater to promote marine life in areas where natural structures are not available. This reefs also control erosion, block the passage of ship as well as trawling nets. One benefit of artificial reefs is that it helps to improve surfing.
  • Some apparel products also use a process of Stamping and cutting natural rubber tubes. For example, sandals and rubber tubes are used as sub-base for roads, and they help to connect the cut sidewalls to form a flexible net.
  • Shredded tyres: Many Civil Engineering projects use shredded tyres, known as Tire Derived Aggregate (TDA). Majorly shredded tyres can be used as a back-fill for retaining walls as well as for roadway landslide repair projects and a vibration-damping material for railway lines. In addition to this, shredded tyres are used as a fill for landfill gas trench collection wells.

Reclaimed Rubber

Natural Rubber Reclaim

GE NR

Application

1. Natural Inner Tubes
2. Tyre Inner Liner
3. Tread Rubber
4. Extruded Rubber Parts
5. Calendered products

Advantages

Less masticating with easy incorporation.
Faster Mixing and Extrusion
Reduced Energy Consumption
Replaces Virgin Natural Rubber & helps in
